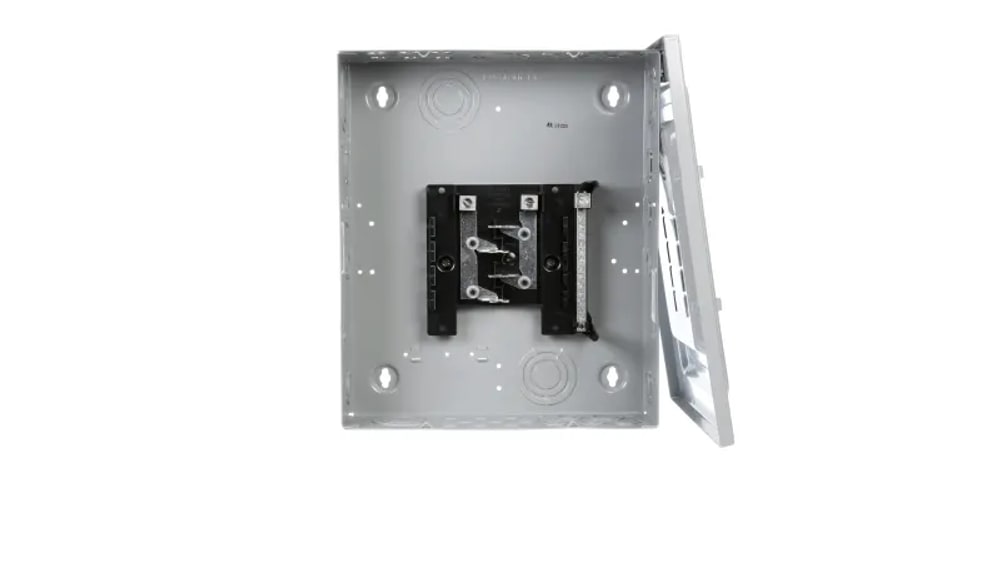

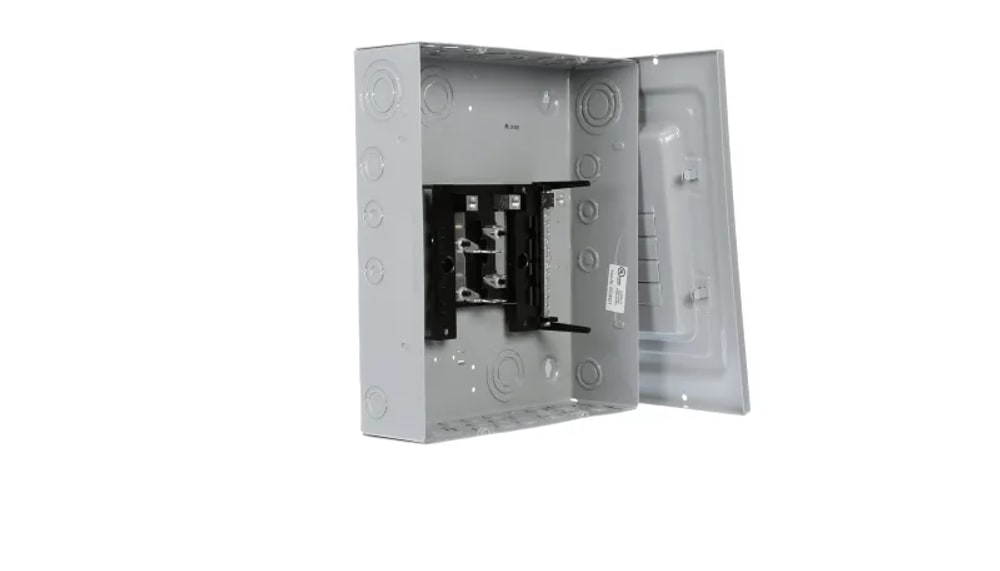

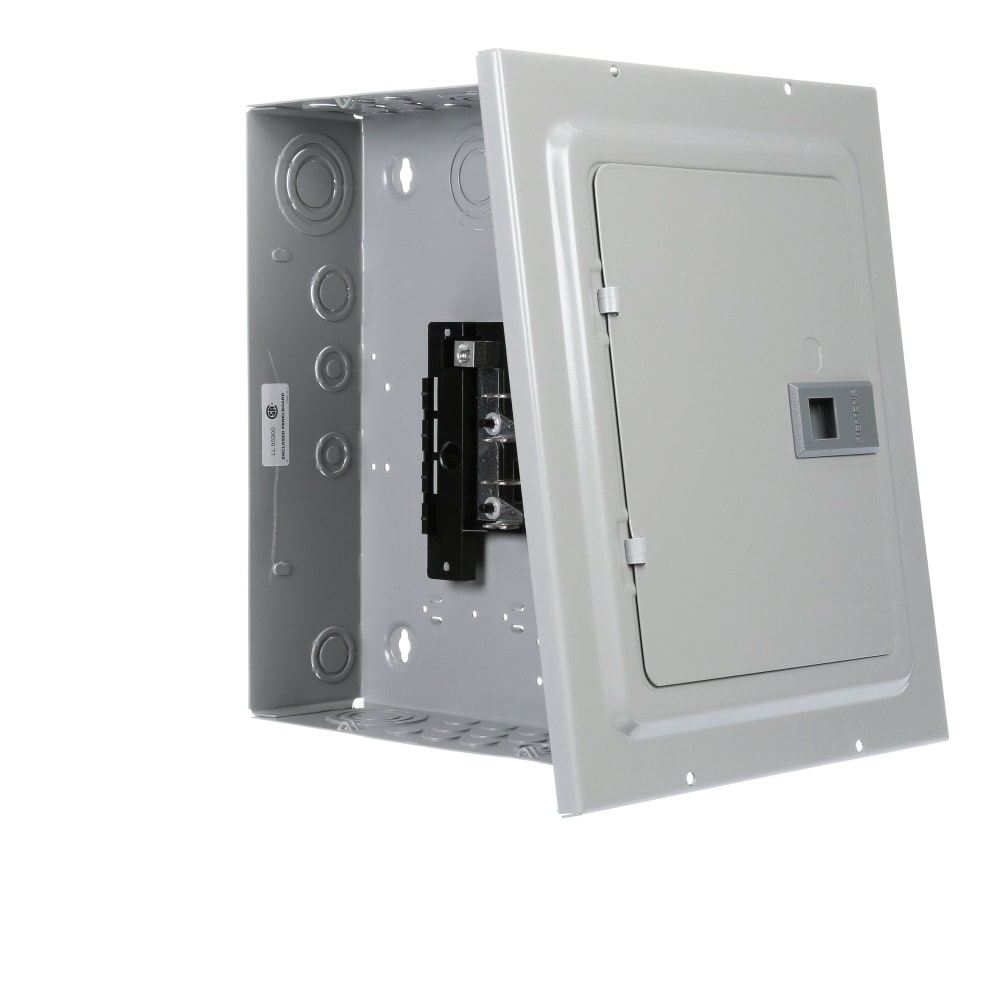

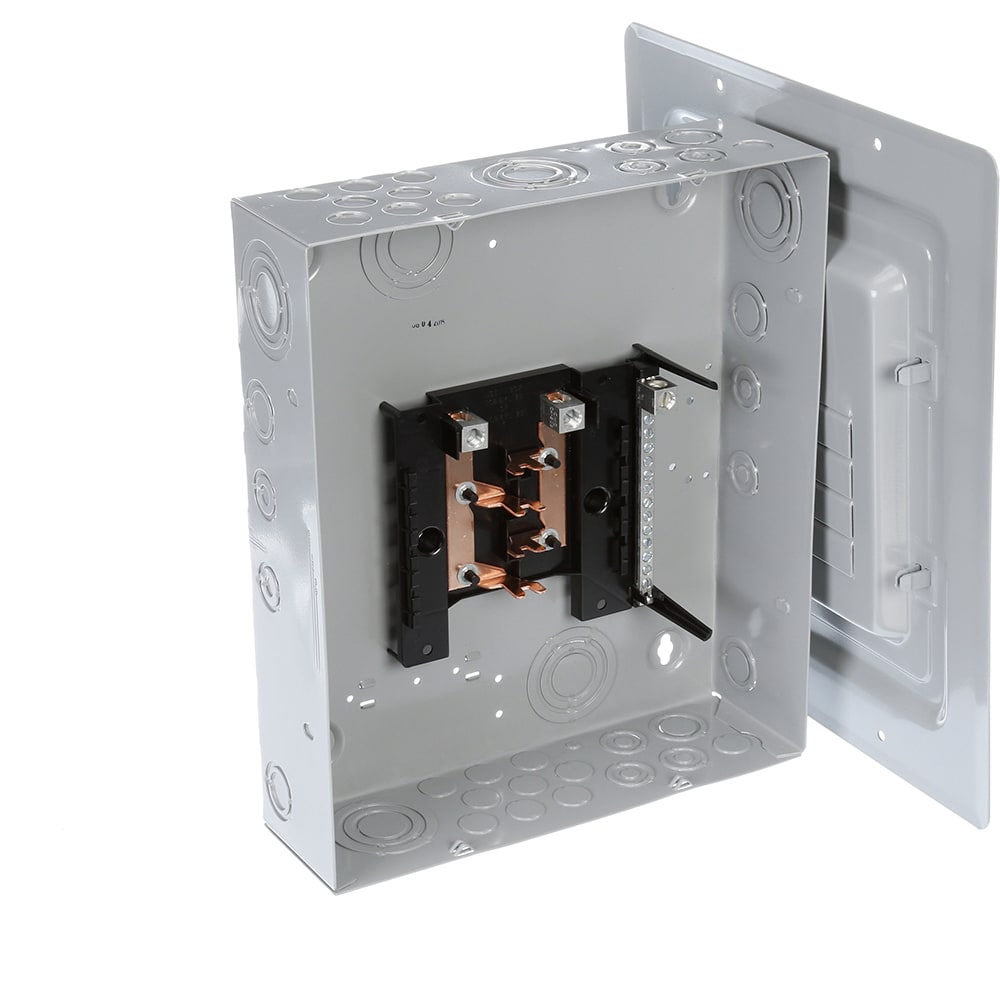

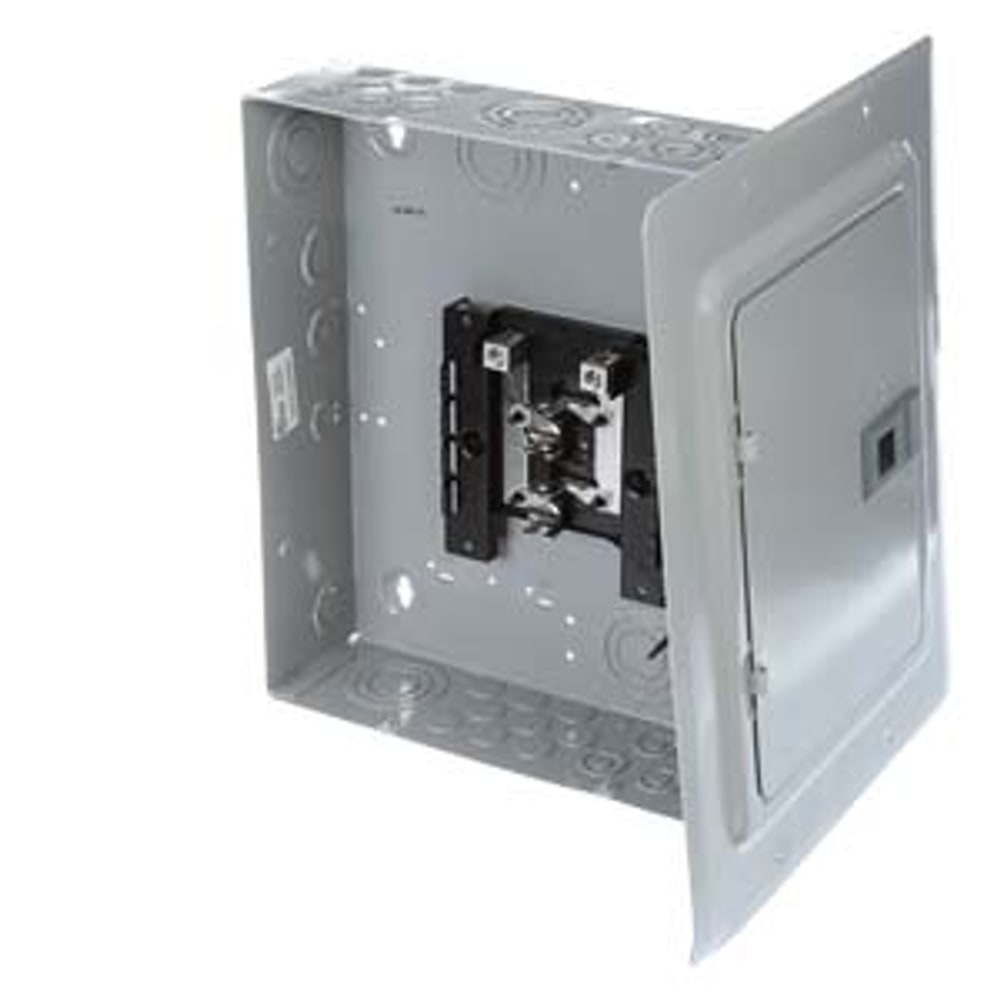

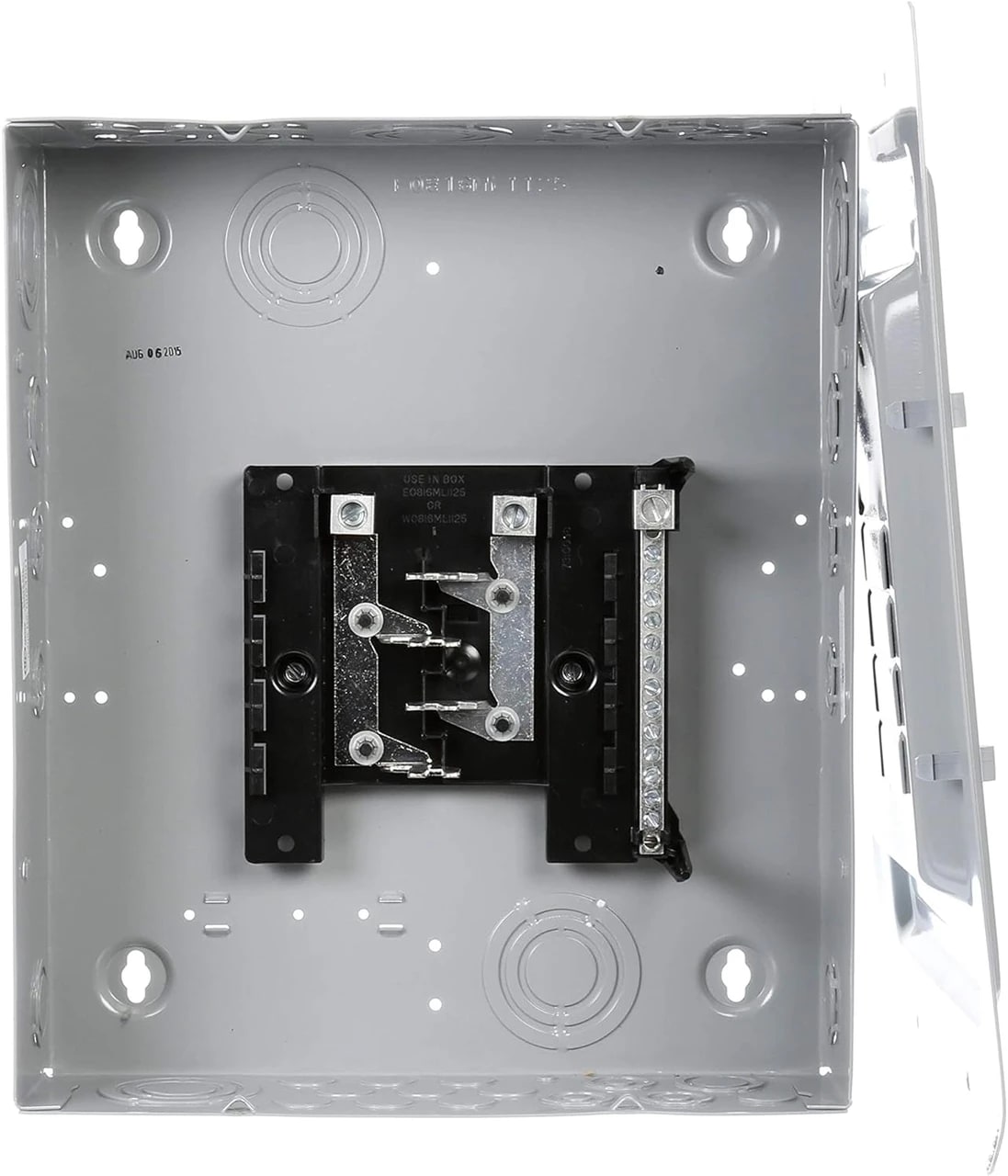

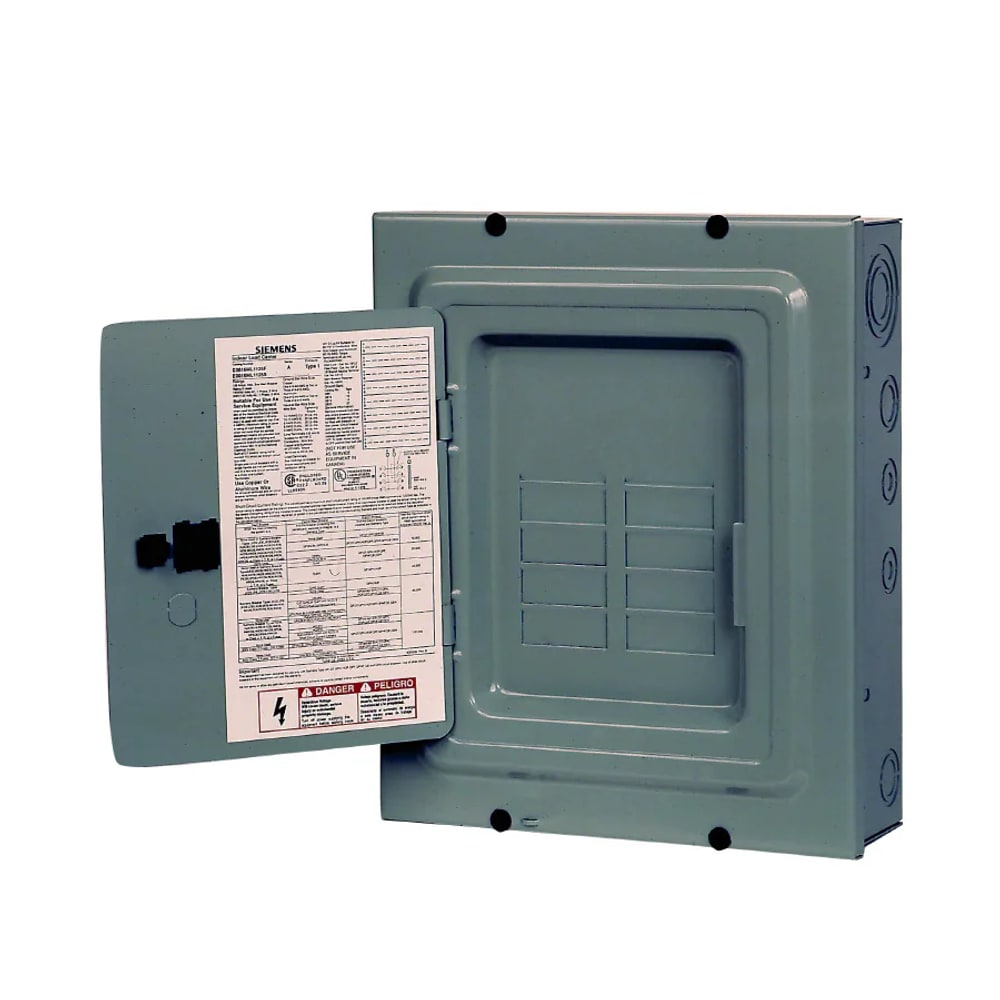

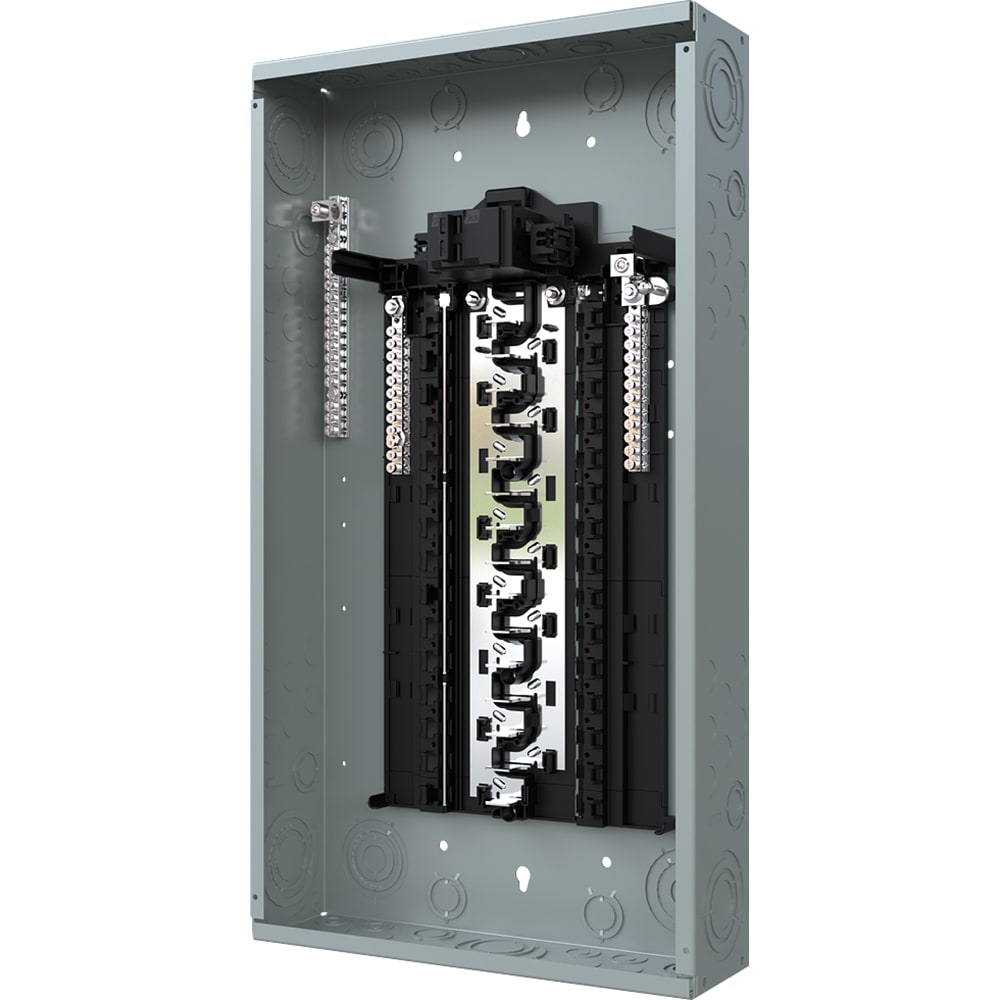

Siemens EQ 125A 8-Space 16-Circuit Main-Lug Load Center, 120/240V, Indoor NEMA Type 1, Flush-Mount

0 Reviews
SKU
E0816ML1125SF

This Siemens EQ load center is a 125 A main-lug unit configured for 120/240 V, single-phase, 3-wire systems, with 8 spaces for 16 circuits. Its indoor NEMA Type 1 enclosure is specified for flush mounting; the unit has an aluminum bus, a 100 kA interrupting rating, and UL listing.

  • 125 A Main-Lug Configuration
  • 8 Spaces, 16 Circuits
  • 120/240 V, Single-Phase, 3-Wire
  • 100 kA Interrupting Rating
  • Aluminum Bus
  • Indoor NEMA Type 1 Flush-Mount

Product Overview

This Siemens EQ load center is a 125 A main-lug unit configured for 120/240 V, single-phase, 3-wire systems, with 8 spaces for 16 circuits. Its indoor NEMA Type 1 enclosure is specified for flush mounting; the unit has an aluminum bus, a 100 kA interrupting rating, and UL listing.

Technical Specifications

Product information and specifications for the selected item.

SKU: E0816ML1125SF

Product Information

BrandSiemens
MPNE0816ML1125F
SKUE0816ML1125SF
CategoryLoad Centers & Breaker Panels

Key Specs

Maximum Amperage (A)125
Number of Circuits16
Voltage120/240 volts
Breaker Box TypeSubpanel
Connection TypeNeutral

Electrical Capacity

Maximum Amperage (A)125
Voltage120/240 volts
Number of Circuits16
Number of spaces8 spaces
Phase count1 phase
Maximum two-pole breaker positions4 positions
Interrupting rating100 kA
Wire size range4 to 2/0 AWG

Panel Configuration

Breaker Box TypeSubpanel
Connection TypeNeutral
Mounting TypeFlush
Series TypeEQ
Enclosure materialGalvanized carbon steel
Plug-on neutralNo
Breaker mountingPlug-In
Load-center configurationMain Lug
Feed-through lugsNo
Application suitabilityService entrance or subfeed applications
Breaker hook-rail constructionPositive load-side circuit-breaker hook rails
Wiring configuration3-wire
Ground bar installedNo
Interior removabilityInteriors offer removal in seconds
Bus materialAluminum
Busbar constructionOne-piece bus bar construction designed for use only with circuit breakers

Location & Package

Indoor/OutdoorIndoor
Bundle/SingleSingle Product
Enclosure typeNEMA Type 1

Certifications

Certifications and ListingsUL Listed
Conductor temperature listingUL listed for 60/75°C conductors

Dimensions & Weight

Height (in.)14.75
Width (in.)12.375
Length (in.)3.875
Weight (lb.)12.015
