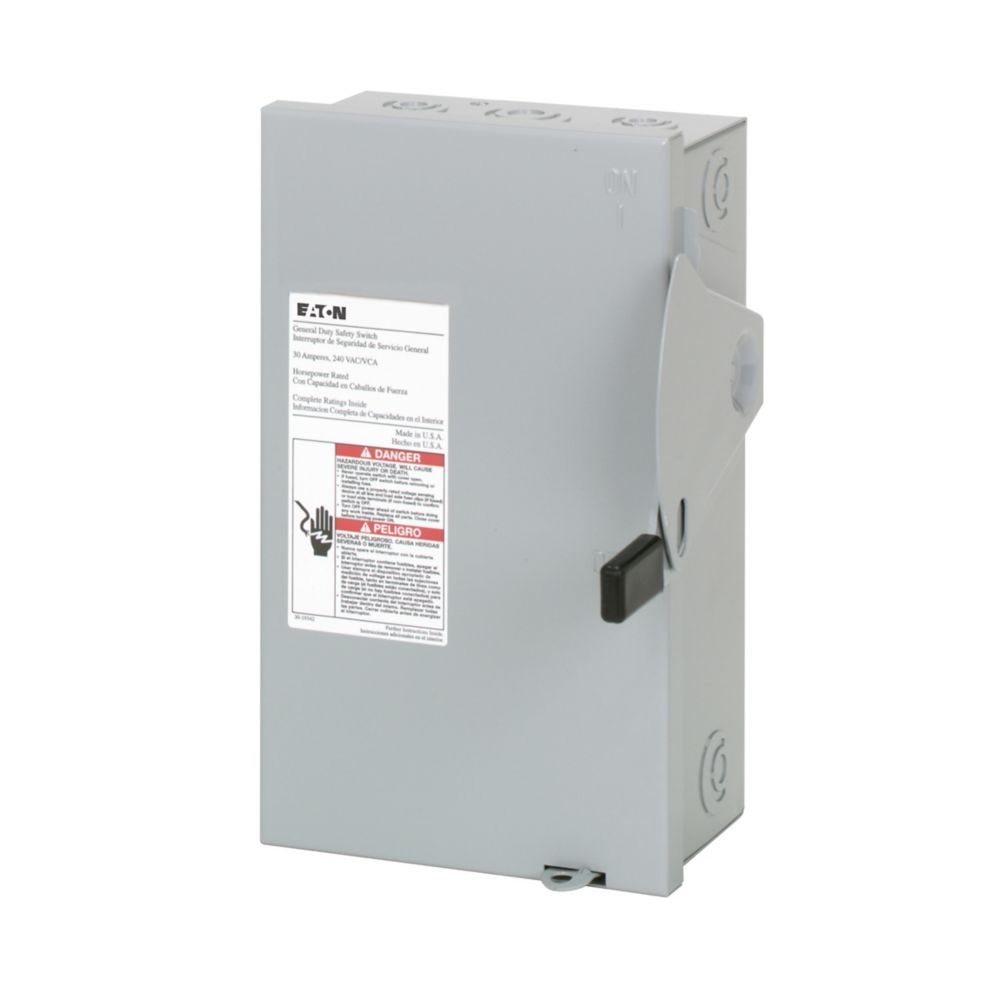

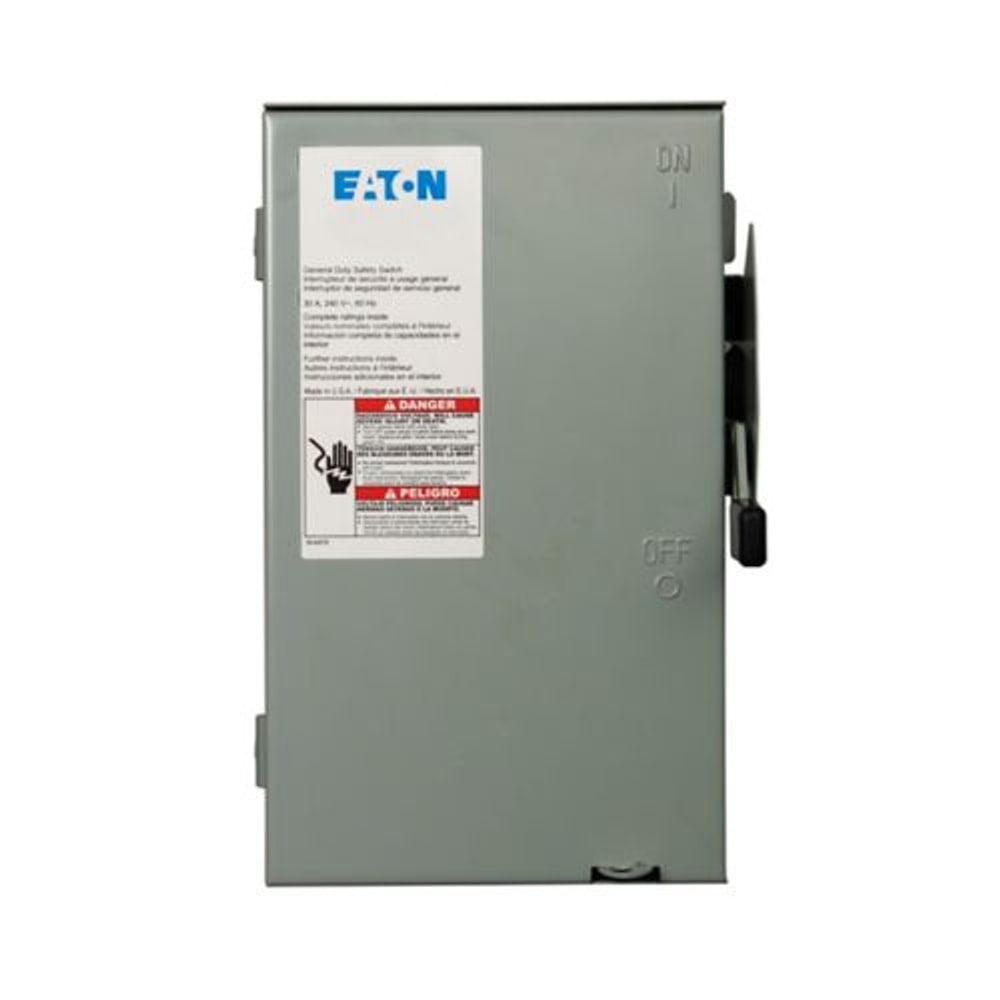

30A 2P 240V FUSED INDOOR SAFETY SWITCH

0 Reviews
SKU
GF221N

Eaton GF221N is identified as a 30 A, two-pole, 240 V fused indoor safety switch. Supplemental electrical data lists a 120/240 Vac system and a two-pole, three-wire circuit with a solid neutral.

  • 30 A, 2-Pole, 240 V Rating
  • Class H Fuse Provision
  • Three-Wire Circuit Configuration
  • Short-Circuit Ratings
  • 240 V Motor Horsepower Ratings
  • 100% Load-Break and Load-Make

Product Overview

Eaton GF221N is identified as a 30 A, two-pole, 240 V fused indoor safety switch. Supplemental electrical data lists a 120/240 Vac system and a two-pole, three-wire circuit with a solid neutral.

Technical Specifications

Product information and specifications for the selected item.

SKU: GF221N

Product Information

BrandEaton
SKUGF221N
CategoryDisconnects & Safety Switches

Key Specs

Maximum Amperage (A)30
Phase Type1 Phase
Disconnect TypeSafety Switch
NEMA Enclosure RatingNEMA 1

Switch Ratings

Maximum Amperage (A)30
Phase Type1 Phase
System voltage120/240 Vac
Load and continuous-current ratings100% load-break and 100% load-make rated; for non-motor circuits, continuous load current must not exceed 80% of the fuse rating.
Maximum motor horsepower ratings1.5–3 hp at 240 Vac single-phase; 3–7.5 hp at 240 Vac three-phase (grounded B phase). Ratings apply only with dual-element time-delay fuses.
Short-circuit ratings10,000 A rms symmetrical with Class H fuses; 100 kA at 240 V for Type 1 with Class R/J/T fusing where applicable.

Disconnect Configuration

Disconnect TypeSafety Switch
FusedFused
Fuse class provisionClass H fuses
Door interlockThe door cannot be opened with the handle ON; a front- and side-operable defeater mechanism allows access when necessary on single-throw switches.
Circuit configurationTwo-pole, three-wire; two blades, two fuses, and solid neutral.

Enclosure & Certifications

NEMA Enclosure RatingNEMA 1
Certifications and ListingsUL Listed
Conduit entry provisionTangential knockouts are provided on the top, bottom, and sides of NEMA 1 and NEMA 3R enclosures through 200 A.
Enclosure materialPainted steel
Compliance and applicable standardsNEC 230.62(C) compliant barrier; meets UL 98 for enclosed switches and NEMA Standard KS-1.

Dimensions & Weight

Width (in.)6.1
